Wing Span

Among the many thing that I prepped and brought to GenCon for painting in the Badger Airbrush booth was the massive multi headed dragon from Reaper Miniatures.  It had been part of the BONES 3 kickstarter campaign.

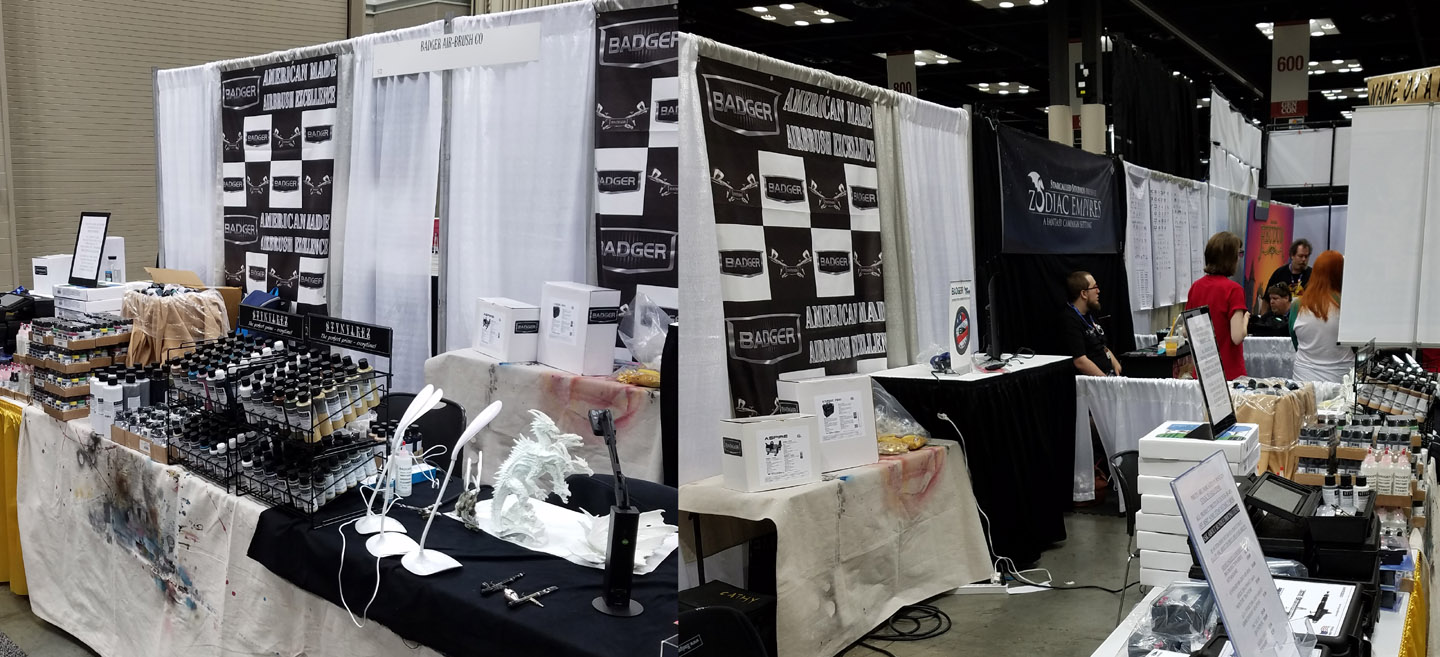

Here you see some of the final setup in the booth on Thursday morning.

In addition to the BONES minis, I had a collection of Bolt Action tanks, weapon teams and infantry.  This would be used to show how to effectively use the “primer painting” method that you have seen me using lately.

I had no idea what I wanted to do with the dragon.  An idea to make it into a Fire Dragon was even entertained, but I just decided to start spraying various colors of primer at it to see what developed!

I made a few dark mixes of the Stynlrez primer, a favorite product of mine from the Badger line.  I took black and let that mix with some of the dark brown primers for the deepest recesses.  At my usual high PSI of around 40, the paint had no problem reaching into those hard to access areas.

Once the darks had been established, I went back in with lighter mixes.  There are 12 colors of primer to choose from, so you can make just about anything!  I even mixed in some of the blue primer here and there.
I showed onlookers how they could position the airbrush and the figure itself to get instant highlights on raised surfaces like the wings.
Another experiment was performed, and that was to mix in a few drops of the Ghost Tints with the primer.  This created some amazing colors an effects, and I will definitely be doing more of that!

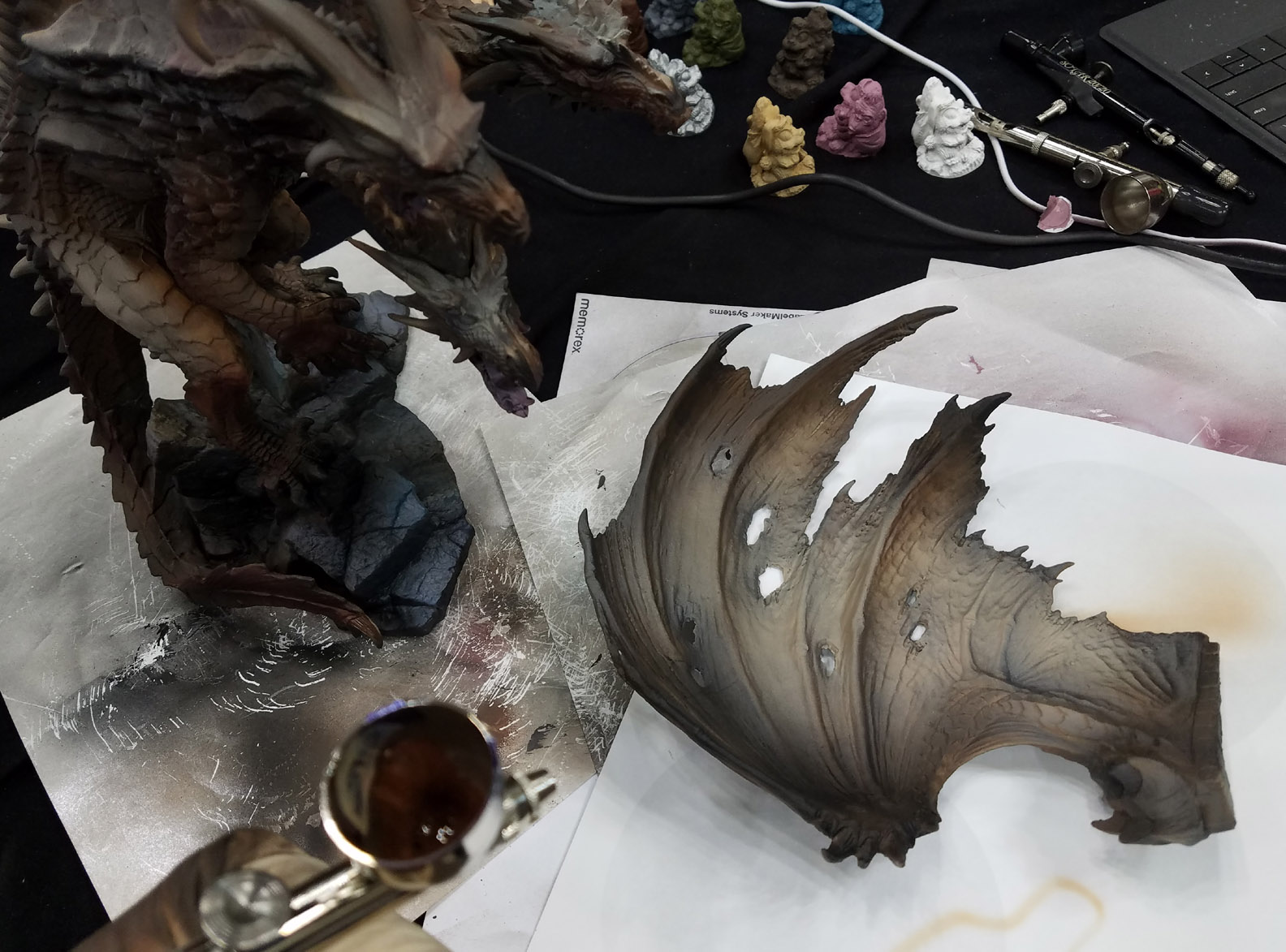

You can see how I focused on those darker areas to begin with in this image.
Also, while I had this set of primer colors going through the brush, I worked on some of the other miniatures and vehicles.  When I do an airbrush session at home, I often have terrain pieces, figures, vehicles, planes and monsters all lined up, just in case those colors could be used on any of those items.  It really maximizes your time, and the amount of paint you need.

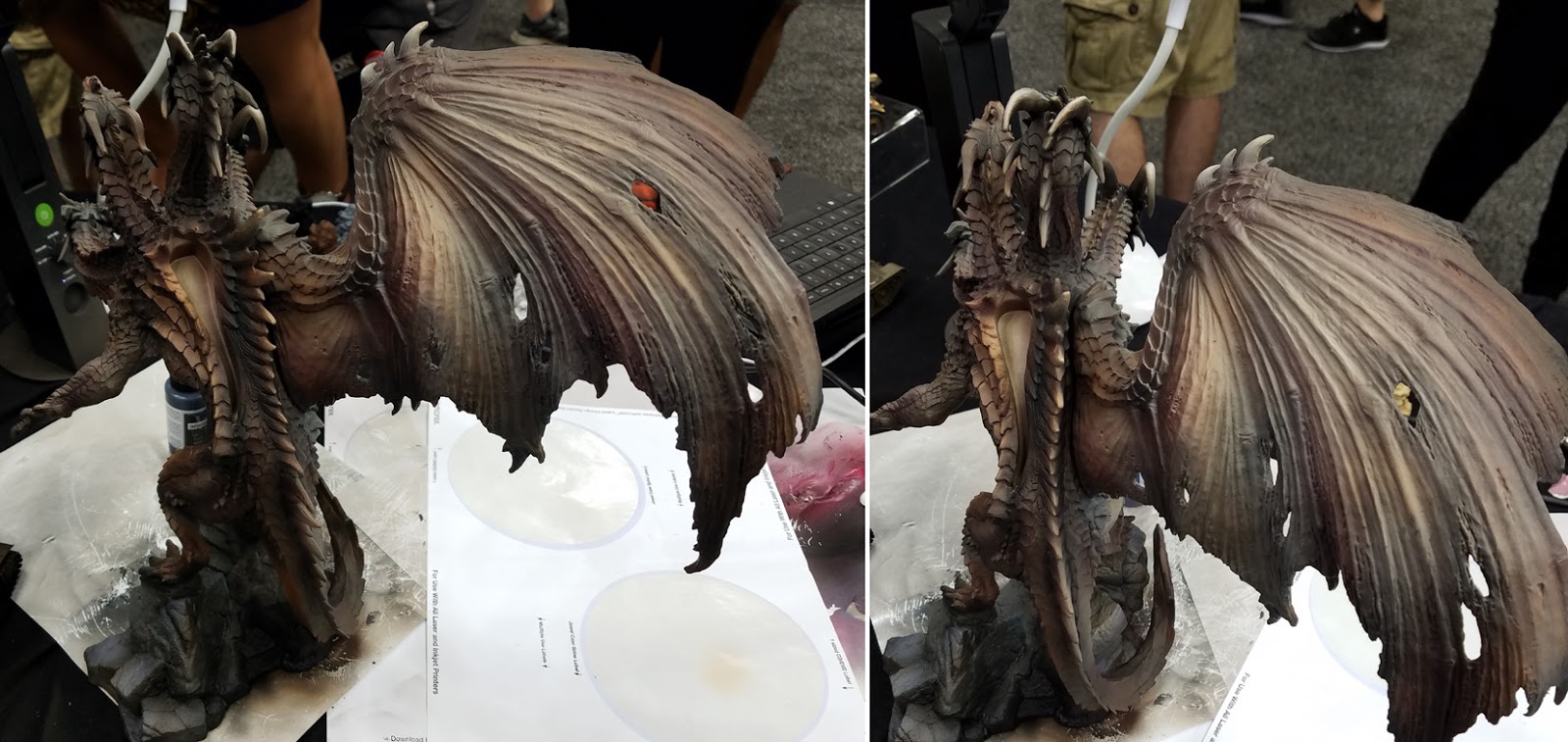

This image shows some of the tinting that I mentioned, including some blueish colors, and even hints of red.  With so many elements of interest on this giant figure (not the least of which was 5 heads!), it is very important not to have huge swaths of similar colors.

What I like about doing this primer painting with the airbrush is that I can experiment on the fly with all kinds of colors in a matter of seconds.  If I don’t like the result, I can simply primer over it with a different set of colors.  This was done with a dragon that had been painted green at World Expo.

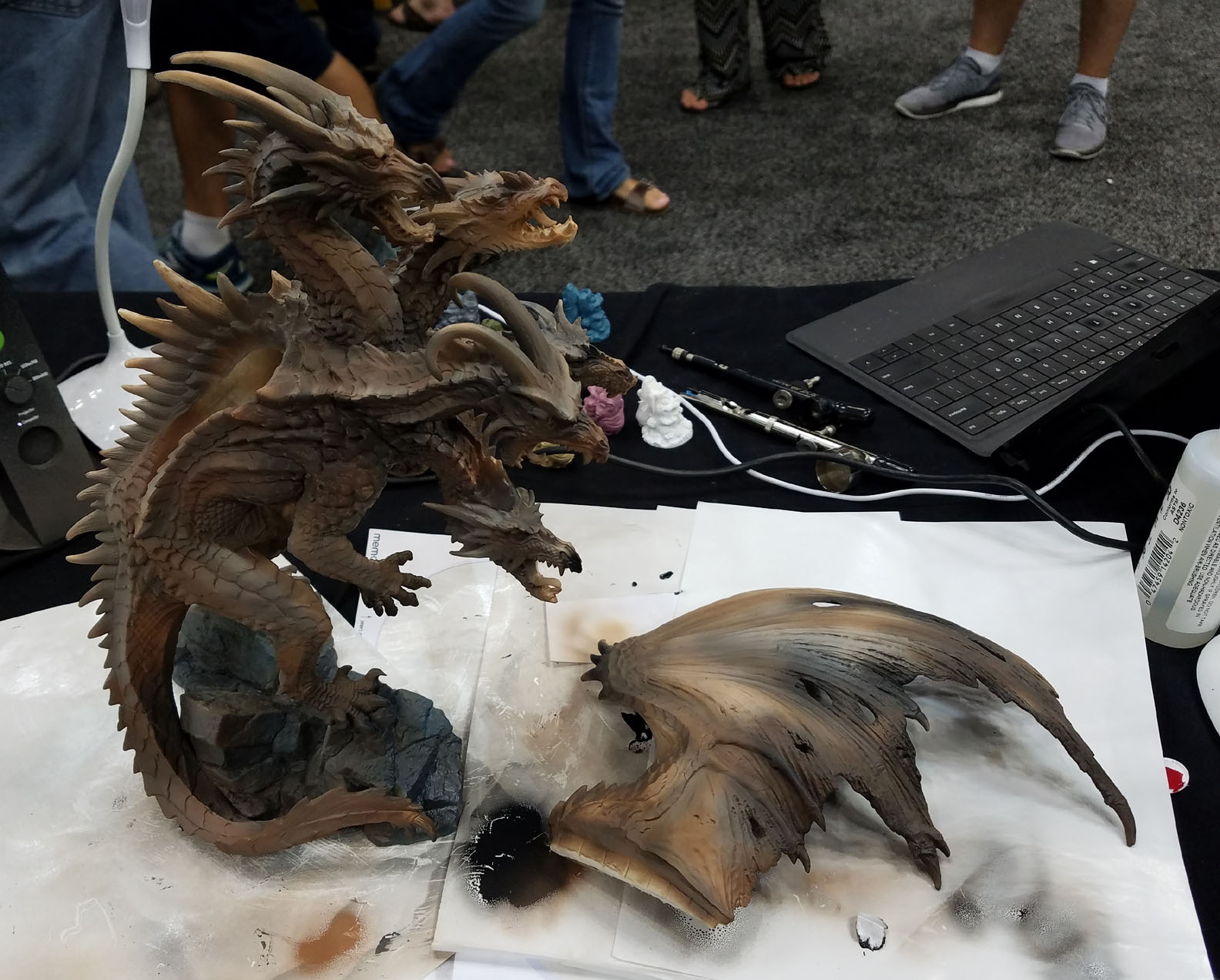

You can see some of that tinting and adjusting here.  I had to make some changes on the areas where the wings met the main body, mostly tinting them more reddish and making them darker.
Stay tuned for the next episode, where I will discuss how regular brushes were used to work from the basic colors created with the airbrush, and mixing the primer and Ghost Tints!
For those of you who have asked me over and over again where you can get the Badger primers on line… I finally have a location for you.  That is at webairbrushes.com.  If you use the discount code of “Wappellious”, you will get a 42% discount.    Just click on paints and scroll down to the Stynlrez primers!
A link:
http://webairbrushes.com/

Original Post



The Red Menace

Long ago, when I was first developing the Shaded Basecoat technique, this is one of the units that I was working on.  At that point, I had mixed white primer with my paint to make the “lighter than needed” colors, and still do the priming stage too.
Now that I have the airbrushes and the various colors of primer from Badger, it would be a lot easier to do this today!  These guys were tucked away in a box somewhere, forgotten for almost 10 years.
I also didn’t have the access to the fantastic glazing colors such as the Reaper Clear paints, or the Vallejo washes.  It’s always interesting to look at very old pieces like these, and notice the differences.  It has more to do with the approach vs the final result.
My current approach would let me focus more intently on the subtle color shifts in the shadows and mid tones, where years ago the establishment of highlights was the primary goal.

He’s also here:
http://www.ebay.com/itm/-/222620380242?

Original Post



Panzer Blitz

Here’s the finished images of the Panzer 3, which was started during the last facebook live painting session.  As with the StuG 3D, I began with “primer painting” using the Badger Stynlrez primers.  This was followed be glazes and layers of Secret Weapon weathering paints, and then final effects with a variety of Mig AMMO products.

Since these larger Panzer vehicles will be used in the Barbarossa campaigns more than France ’40, I wanted to have a decent amount of mud and dust to reflect the inadequate roads and other features that the advance Eastward faced.

I was fortunate enough to have a few early war decals left from the StuG kit for this vehicle.  It is ironic that I have many pages of mid to late war sheets that I have not gotten to use!  Eventually I will be doing those sorts of vehicles, and I will at last get to use them.

This is a very basic Panzer 3, which is supposed to reflect the rather inadequate armaments and armor protection that tankers faced in the march East.  However, it has already shown itself to be very valuable in other early war battles.

I also used the Green Stuff World leaf cutters to make my usual patterns of leaves on the upper hull.  When combined with the dirt effects using the weathering powders, this gives the upper surfaces more dimension that seems to be concentrated more on the tracks with more vehicles.

It can be very tempting to have all kinds of texture on those lower areas, and leave the upper hull to chipping and rust.  I look forward to adding these foliage and dirt effects, especially given how leaves and debris accumulate on our wiper blades here in a peaceful urban environment!

A little peek at both vehicles.  Soon I will try to post some group shots with the rest of the tanks, trucks and so on.

Original Post



Best Buddies

Time for a few more of the plastic dinosaurs!  These two presented some unique challenges.
First, the plastic was very flexible, which meant that I would have to be wary of hanging onto a tail and hoping to keep the figure steady!

Also, the material is like the BONES plastic, so mould lines pretty much are going to be in your way in some critical areas.

The task was to come up with some unique colors and patterns for these, so I tried to do that with not only colors but shapes as well.

This one was extremely flexible, which made painting the head and tail somewhat interesting 🙂

While the colors on these two are not as bright as the others (no blues or reds, for example), I was more adventurous with the patterns and markings.

Now they get to frolic in the forests together!

There are more dinosaur images to come, so stay tuned!

Original Post



Battle Plan

While I have been posting individual shots of the winter American force, I have not had the chance to post any group or army shots.
As I have mentioned in precious posts, winter basing is not something that I have had a chance to do for my own armies.  This will be rectified with FOUR winter armies… US, German, Soviet and even Hungarian.

The Hellcat is actually from Trenchworx, and here’s a link to some live facebook sessions showing how that was painted:

https://www.facebook.com/james.wappel/videos/vb.1056181987/10209553700813482/?type=2&theater

I also have some links to articles on how the infantry was done.  This army was also very unique in that it was the first where I used oils for the entire process!  Here’s a link to an article:
http://wappellious.blogspot.com/2017/02/oil-slick.html

I had so much fun painting them with oils, as well as creating the urban theme bases for the first time.  I also have links to a series of articles:
http://wappellious.blogspot.com/2016/08/lets-get-happy.html
http://wappellious.blogspot.com/2016/08/lets-get-happy.html
http://wappellious.blogspot.com/2017/05/ground-cover.html

I will have many more articles and facebook live sessions on painting figures with oils, basing, etc., once Gencon and Nova Open have been complete.  Stay tuned!

Original Post



The Island Church

Continuing the centerpiece of the Barbarossa terrain board, it’s time to get the roof finished with some shingles.  As I mentioned in the close of the first post, I was going to go with longer planks to match the reference images and a few of the other buildings that we already have.  Only one has traditional shingles.
I discovered that the spray adhesive works really well for this. Not only does it make it easier to glue them on, but it will not warp the hardboard and cereal box material like water based glues.
Yes, you heard that right… just strips of cereal boxes!!

By doing these longer strips, I conserved a lot of time, especially around the angled areas such as the dormers.

I cut a few strips to use on the crests of the roof lines.  This is a part of the actual design, and it helps to cover up the origin points of the planks too.

I repeated the process on the dormers, the door piece, etc.  I also put the Orthodox cross at the top of the onion dome.

Here are a few more images, showing the window sills, and a few other additional effects.

After letting the glue have a few minutes to set, it was time to match the sand and gravel on the base to match all the tree stands and previous buildings.

This was done in the usual fashion, starting with the heaviest gravel, and working down to the finer sand.

Then it was time to put the church on the island to see how it would loo, and if it would fit!

You can see the material that was used to create the church in the background.

This overview shows the size of the church relative to the other buildings that are already complete.

With the surrounding forests, this will not only dominate the landscape, but make a true centerpiece, surrounded by the village and the woods.

Roy was able to find a few resin bridges that will fit perfectly with the rustic nature of the village, and be interesting sources of objectives to fight over!

A few more views, prior to painting…

For the interior, I will be adding printed versions of this Byzantine style church art.  It is a nice way to enhance that part of the building, and potentially make more opportunities for “stolen art” scenarios.  Roy found one in the Battle of the Bulge book, so we will modify that for the Eastern Front.
When I found reference images for the church, I noticed that the interiors tend to be lavishly decorated, almost like miniature wooden Sistine Chapels.
Stay tuned for more!

Original Post



Get me to the Church on time

The last major piece of the Barbarossa terrain board is going to be a small wooden church, done in classic Orthodox style.  I ran across a few images in a quick google search, focusing more on smaller, simpler versions.
This is essential, since time and space are an issue.  We will be placing this on the small “island” in the center of the board.  That will provide not only a visual centerpiece, but lots of line of sight screening too!

To match the existing buildings, I chose the simple A frame roof designs, and set about making some quick measurements.  I will be using the same thin pink foam underlayment that I have been using for previous structures.

Once the pieces were set, I used a pen to create a quick log texture on the walls.  I could have gotten fancier with this, but time constraints meant that I had to make do.

The four basic shapes are ready to glue to the base.  I had to leave enough windows for troops to shoot from, but I wanted to restrict the access to the interior by having just one door.
Also, the extreme roof pitch had to factor in, which is why the windows seem so low on the walls.

The initial pieces glued to the base with the strong, fast setting wood glue.

The roof will be made from a thinner hardboard, which is nothing more than the discarded backing of a palette pad.  Any sort of notebook backing, etc., is great for this purpose.  It is strong, light, and has a thinner profile than the pink foam.
This also has to be removeable from the main section of the building to place troops inside.

I used a few small pieces of painter’s tape to secure the parts together as they dried.

A few left over pieces of thicker insulation foam will form the spire and the dormers.  I used my cut out piece of roof foam to get the correct angles for cutting the lower spire.

On this would be placed a chunk of plastic tubing, left over from a roll of green stuff.  I cut and shaped a piece of thick foam to create the “onion dome”, which was then sanded.  I will be putting some stucco like material on that surface to smooth it out prior to painting.

To add the extra roof line dimension seen in the reference pictures, I made a simple A frame roof piece to place over the doorway.  A few vertical strips of the thin foam would hold it in place.

I glued it in place, careful not to get any glue on the roof section.  Otherwise I would not be able to take that away for troop placement!  The added benefit of this decorative piece is that it would help to hold that large roof section where it belonged.

Again, the pieces are held in place as the glue dries with painter’s tape, and I started to look for some ideal pieces of thick foam to make the dormers for either side of the main spire.

As before, I used my discarded roof line cut outs to gauge the angles needed to match the roof pitch.  The insert image shows the secondary cuts made to create a roof line for the dormer itself.  These should not be too huge.

Just as I did with the front decorative roof section, more of the hardboard was used to make slightly overhanging roofs for each dormer.

Once the dormers were in place, and the glue had a little time to set, I wanted to make some roof boards that would match one of the reference images, and a few of the actual buildings on the board.  This would take the form of long planks.
Only one of our roofs had shingles on it, and doing the long boards would reduce the amount of time needed.  As usual, time is very scarce for these projects, and that is a frequent compromise.
The factors of playbility, strength, realism, time and cost all play into the development of these pieces.  Over time, I have been able to really maximize and minimize these 4 elements.
I will post the rest of the construction tomorrow, so stay tuned!

Original Post



Jurassic Park

Time for more pictures of toy dinosaurs!

The assignment was to give these plastic dinos a new look, as in a brighter more dramatic treatment similar to what I have done on my Lizardman figures.
Not only is the material similar to BONES, these also had the company name and other copyright information printed on the figure too!  This was very challenging to work around, especially where any kind of markings were done.

In some ways, the markings allowed me to hide some of that by distracting the eye away from the shadows created.  It was less of an issue before I started painting, since the original paint jobs were much darker and very plain in those spots.

The two dinosaurs to the right were pretty huge.  Since I could not put them on bases, falling over was a very common occurrence! I did learn that wearing a plastic glove on the hand I used to hold them really helped to prevent paint loss.
More to come, so stay tuned!

Original Post



Long Range

One of the most unique elements to making Bolt Action armies is putting together and painting the weapon teams, especially artillery pieces.
They present a number of unique challenges, since you have to deal with crews of 3-5 figures placed specifically around a very odd sized hunk of metal!

In a recent post I showed how I approach putting these on the bases (a few others are also in the blog file already).  Here’s a link:
http://wappellious.blogspot.com/2017/08/basing-das-biest.html

Painting these is not an easy process.  The figures almost always have to be glued in place as you create the diorama, although the gun itself can be painted on its own.
Using the Badger airbrush and primers is very helpful for doing all the pre shading, which means that I on;y have to do glazing and other “surface” work instead of painting 100% of these figures.

Still, the nature of the poses and their placement can make it very hard to do specific details, such as the faces, hands, and equipment that they may be holding.

I have a facebook live session recorded on how the mud effects and foliage are done on these kinds of pieces:
https://www.facebook.com/james.wappel/videos/vb.1056181987/10210726643576318/?type=2&theater

I still have two more artillery pieces to go yet for the early war Heer.  Once those are complete, I will take some group shots!  I am really looking forward to that 🙂

Much more to come on these, including more facebook live sessions on how to base them and paint them… stay tuned.

Original Post



The Arch Mage

While this was a relatively small piece, it was a massive pain to deal with 🙂  Assembling it was crazy enough, but several chunks had to be left unglued so that I could actually get a brush in there!

The Secret Weapon weathering paints were key to getting this done, since I could do a huge portion of the shading by glazing.

I had begun the process by “pre-shading” with the airbrush, establishing where the general lights and darks would be.  Those glazes allowed be to not only shade this, but also tint the colors to get far more variety than a simple series of grays!

When you have this many tiny little bits, it is even more important to have that sort of variety.  Otherwise it will be extremely boring to look at, and all other those pieces will simply blend together.

In effect, this was a limited palette exercise, and a challenging one at that!

Since the request was to paint the robes in something other than the usual reds, I lost my primary source of contrast to the grays and golds.  Now all I had was yet another dark gray!

I used blues, greens, and even pinks to tint my metal surfaces different shades.  My highlight colors ranged from bright green to pink to bright yellow.  Once again, it was all about placing areas of key interest.

Original Post



Opening a New Front

A few weeks after making those terrain stands that you saw in yesterday’s post, I finally had a few hours to put foliage on them!  That process was very similar to how I made those original “swamp” style trees, but with more precision and strength.
I was able to place the spray adhesive far more effectively, and in smaller areas, concentrating the amount of glue into a limited area.  Also, I had learned that I could use almost any color of moss, because it was all going to be covered with various shades of flock!

This method not only created a better appearance in terms of color and shading, but it created a “leaf like” texture that was far better than anything I had been able to do trying to stick clumping flock to plastic trees.

Using the natural tree branches meant that each one was unique, and would not have that obvious plastic tree shape.
The logs which you saw in the previous post looked great on the water/saw mill1

In Bolt Action, you really need to know the exact outline of the forest zones.  With this method, you get a clearly defined edge, but from a view like this, you don’t really notice the isolated sections one bit!  It creates a very nice panorama.

Even now, I have some new things that I want to try out on the bigger trees.  That would be to glue some of the dried foliage pieces from the craft store onto the larger trunks.  You have seen those be used on my bases, but I feel like adding those extra “branches” will make the tree canopy stronger, and add realism too!

We can still have our swamp board, which will mimic the huge Pripyet Marshes that dominated the landscape of western Russia.

Between the very rustic buildings, the rivers, and the tree stands, this should be the most realistic and challenging board that I have ever played on!  The idea was to match the very difficult terrain, with poor roads, few bridges, and other rough terrain.

Roy was VERY happy to see his first completed squad of Soviets hit the table.  They blended in so well with the terrain, it was actually quite difficult to see them when it came time to put those guys back in the box!

We got the T-34/85 painted up quickly, and that just had to join them on the table as well.

Once Gencon and Nova have passed, all the units will have been painted, the final terrain pieces made, and then the Eastern Front campaign shall begin!!!

Original Post



Forest Fires

Most of you have probably seen the first series of posts on the terrain board that has been under construction.  That will serve us for multiple theatres… everything from France, to England, and several locations in Russia.
Part of that series focused on tree stands, but those were meant for marsh and swamp boards.  I have a link to one here:
http://wappellious.blogspot.com/2017/06/the-forest-for-treesfoliage-in-snap.html

The methods that I used on those stands were brand new, as were most of the materials!  So, I decided to make more “regular” forest stands for France and other locations.

These will also be a bit more rugged than those original boards, because I learned a few things in the construction of those swamp stands.  When I made these, I had more oxide paste and other materials on hand.  I also had a longer time frame in which to work.
Since these images were taken, I have done all of the actual foliage on all six of these tree stands.  This time around, it was a lot easier, as I had learned many lessons on how best to use the spray adhesive and the moss clumps.
My latest batches of trees look very realistic, and they will only get better!  A post on that is coming up this week.

You can see more of those materials in this shot, done prior to the primer painting.  I even used some tin foil to create a bomb crater!  That is big enough to fit most of a squad.

For future winter boards, we are experimenting with a variety of pine trees.  While I will be making my own from scratch, I found a bunch of these on Amazon.  The side benefit were all of those “log” pieces, which are perfect for our water/saw mill.

This is a set of terrain that I picked up at a raffle, and it will be modified to fit our urban boards, specially made for Stalingrad, Budapest, Berlin, etc.

Speaking of Stalingrad, the upcoming Soviet army is almost ready for priming.  I have a few more add on figures and weapon teams which I will base live on facebook so that you get a better look at that process.

I also have a wide range of Soviet vehicles, which will mostly get the winter camo treatment.  Others will be more generic, so they can fill in slots for other sections of the front, and seasons.

I have also begun to add some specialized German units, such as Charlemagne Division, early war Waffen, motorcycle troops, and much more!  Stay tuned…
